16.25" F/12.5 CUAS Classical Cassegrain Update Page

Update - as of April 2, 2005, the scope is back in the dome and is operational!  We need to install fans and work on some minor issues.

This page chronicles the testing, discussion, decision-making, and progress on the 16.25" CUAS club Cassegrain.  This telescope was first placed in the newly completed CUAS observatory in 1992.  The story of the observatory is told here, as written some time ago by Dave Leake.

Here are links to documentation of the various phases of the project:

OPTICS
Primary mirror removal, initial inspection
Primary mirror testing - the truth comes out
Choosing a new design - F/12.5 Classical Cass
Old design page - Issues and alternative designs, etc.
Primary mirror refiguring
Secondary mirror fabrication

MECHANICAL WORK

Secondary mirror holder
Mirror cell modifications
Link to painting the fork and tube cradle (Mike C.)
New declination bearings
Reassembly, First Light (NEW!)

Summary

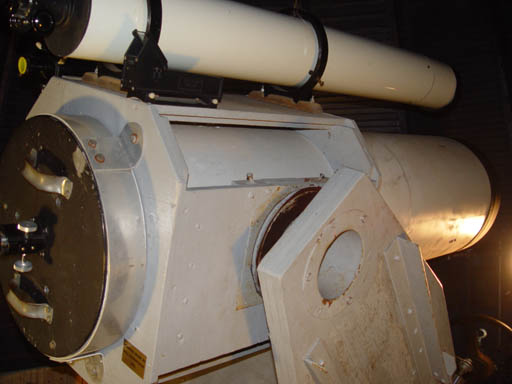

Scope A view of the 16.25" CUAS Cassegrain (old version) telescope in the dome is seen at right, prior to disassembly and reworking.  The scope sits on a large wooden fork mount, attached to a large metal polar shaft.

For years members have had issues with both the optical quality of the telescope and the unique characteristics of the equatorial mount that it's place on.  Some years ago the original secondary mirror was removed and replaced with another on loan from CUAS member Aart Olsen.  The whereabouts of the original secondary are unknown.

After making 12 paraboloidal Newtonian primary mirrors, I decided it was time to make a different type of telescope, and a classical Cassegrain design was appealing and sounded challenging.  So, following discussion of the various problems of the telescope during a club meeting, I volunteered to test the optics, and refigure them if necessary.  A couple meetings later I presented possible designs and made recommendations, which the club voted to accept.  I also decided to make a Cassegrain secondary of my own in parallel with the club secondary, for my own 12.5" F/12.5 Cassegrain.  (I already had refigured the primary.)

Since the optics are done now (recoated by L&L Optical Services), the last phase is to prepare the telescope for them.  We need ventilation fans to cool the primary mirror and some work needs to be done on the telescope mount, particularly the declination bearings, which are "sticky" in operation, and make small movements frustrating at best.  This is mainly due to wear and dirt accumulation over the years.  New declination bearings are being made, and fans will be installed.  The tube is getting a fresh coat of paint, and numerous modifications have been made to the mirror cell.  A new focuser was ordered from MoonLite.
