Mirror Cell Modifications

Well, while the optics are off getting coated, the mirror cell has been modified a bit to work better.

First, the baffle tube was removed.  It was mounted to the part of the cell that held the mirror and TILTED, so whenver the collimation was adjusted, the baffle moved and was no longer aligned properly.  This would be remedied later.  Next, the handles were removed, along with all the old bolts.  The baffle tube base was squared up, and the top was trimmed to the new proper length as per the optical design.

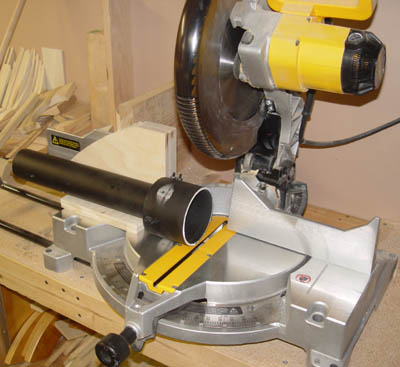

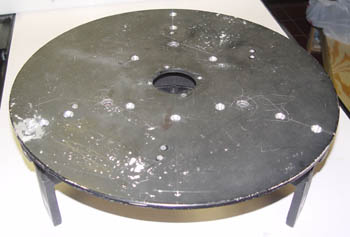

Cell before Cutting tube

Next, the baffle tube was modified so that it could be collimated, and was set up for "push-pull" bolt operation.  Holes were cut in the 1/4" aluminum plate that backs the cell in preparation for three cooling fans.  Handles were reinstalled near the edge of the cell.

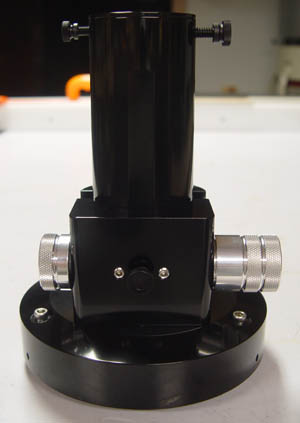

The new focuser, a wonderful two-speed unit from MoonLite CF2-s (normally used on large refractors), arrived and is also pictured below.  It's anodized black, and the motion is silky smooth.  Fit and finish are first rate.  The knob at left is the coarse focus, and the knob at the right is the fine focus.  Ron Newman of MoonLite even made a custom base (seen best in the two photos after these) that was thicker and larger than normal to accomodate the location of the baffle tube.  The larger plate also reinforces and reduces flexure of the back plate of the cell, making the whole assembly more stable.  The focuser can be collimated during final assembly of the telescope.

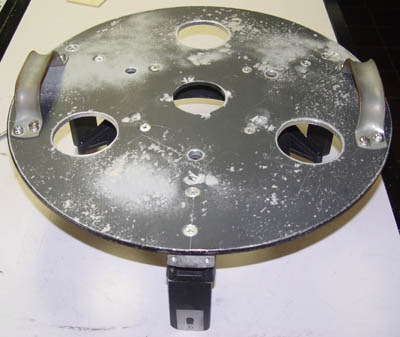

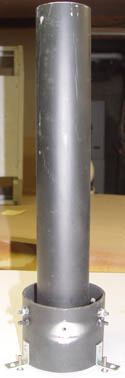

baffle tube cell laterFocuser

Next, the base was removed from the new focuser and bolted on the back of the cell.  It was then removed so holes could be drilled to remount the baffle tube with the push-pull bolts.

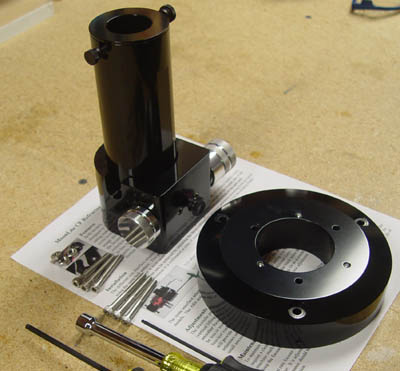

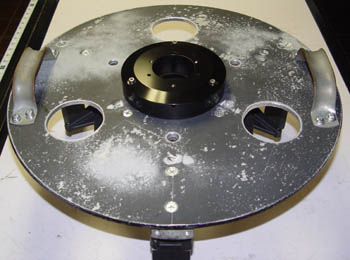

Focuser pieces Base on

Finally, both the baffle and the new focuser were mounted, and lots of pictures were taken of the entire assembly.  Now, all it needs is the mirror!  The focuser has 4.5" of travel (!!!), so it sticks out a long way when fully extended.  The baffle tube limits inward travel by a small amount, but this still leaves us with 4.0" of travel.  That's more than our old focuser, and much smoother!

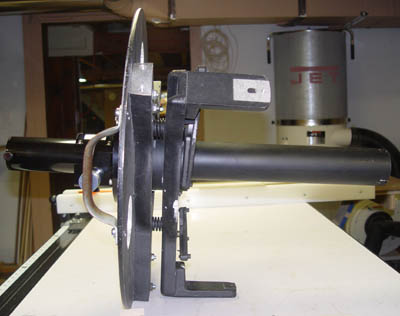

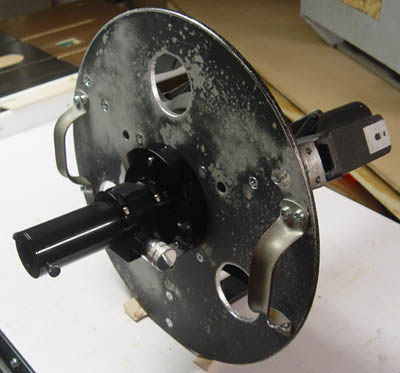

Cell1 Cell2

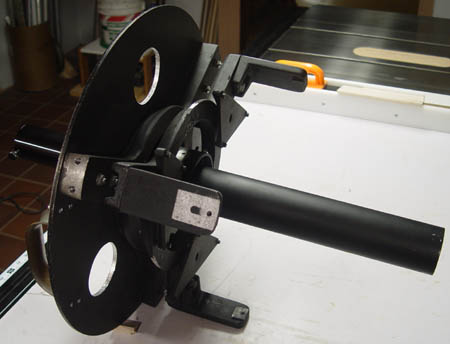

Cell3
