I refigured the primary, but first I had to strip off a 25 year old Beral coating.  It was still reflective, but full of holes.  If only they made them like the used to - they don't last this long any more, it seems.

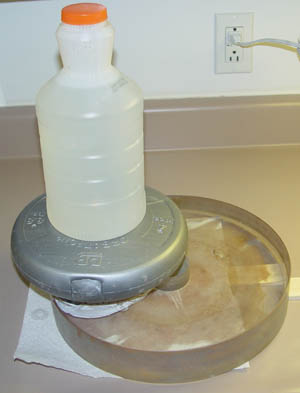

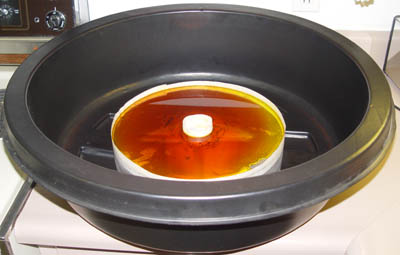

Here's a photo of the primary being stripped, and a refiguring lap being pressed.  Refiguring was done with a lap that was just small enough to be pressed between the edge of the mirror and the edge of the central hole.

primary stripping primary pressing

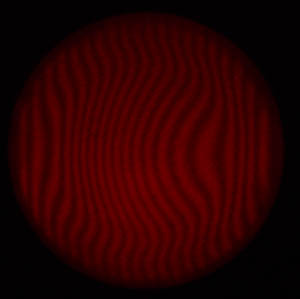

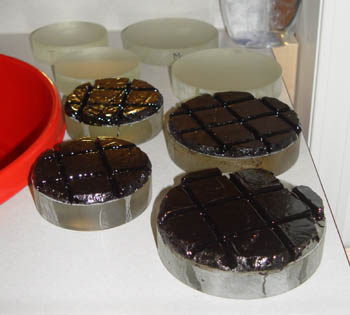

A more thorough discussion of Cassegrain secondary figuring can be found in my page on the optics of the 16.26" CUAS Cassegrain.  Here's a photo of the pitch laps for both Cassegrains, for both the test plate and mirror.  The concave test plate was figured first, and was Foucault tested with two different Couder masks.  Its overall figure was quite good, with a slight dip near the 90% zone.  The secondary was then figured to match the test plate using contact interference testing (again, see the other Cass. page, or my "Tale of Four Flats").  The second photo is the interference test of the secondary in the middle of figuring.

sec1 sec 2

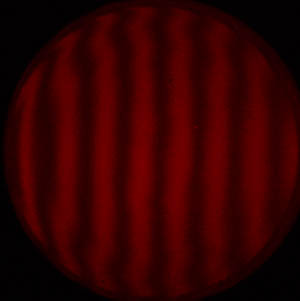

Finally, here's another test image during figuring, and the final test.  The dip in the 90% region is on the test plate, as is the edge roll.

test image Final image
