Mirror box and mirror cell construction

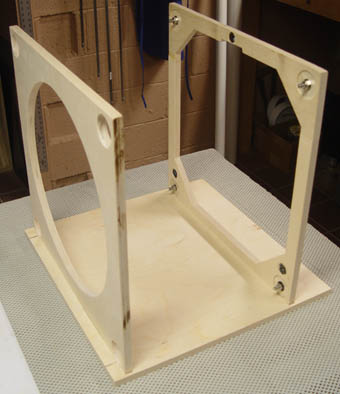

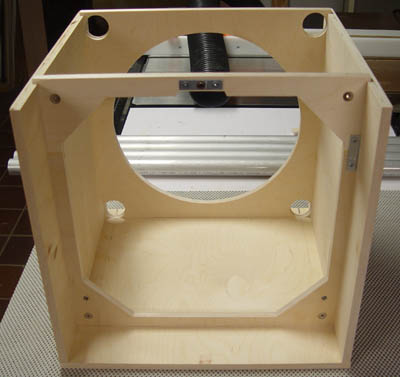

The mirror box consists of two internal baffles, and four sides.  The first photo shows the baffles, which give the box stiffness, inserted into dados in the bottom board.  The next photo shows the sides added to the box, too, as well as the various mounting holes and bolts for the poles and the mirror cell..

Box Box

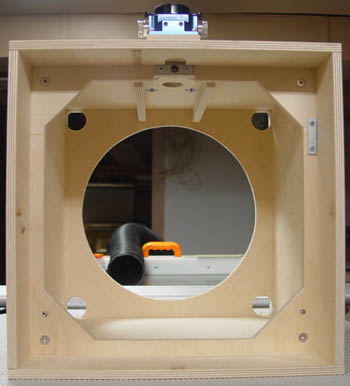

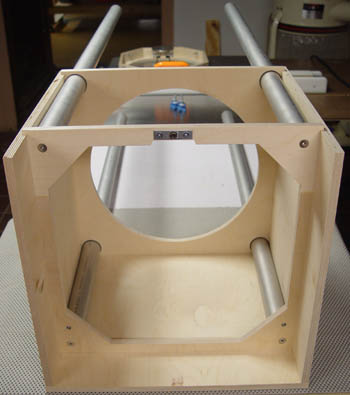

The next view shows the box from the rear, and the bracing on the underside of the top board which stiffens the box under the focuser.  The focuser is mounted, too.  The second photo below shows the poles inserted through the front board, and screwed onto the bolts mounted in the back baffle.

box box4

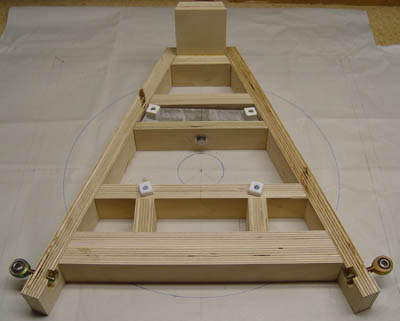

Finally, the mirror box is glued up and clamped with the poles inserted, to make sure they will go back in after the glue sets.  The holes are drilled for close clearance, so that there is no slop in the truss.  Actually, the poles are flexed slightly inward when the secondary cage is attached.  The second photo show the mirror cell, made of mainly 3/4" baltic birch plywood, with an aluminum pivot bar.  Flotation is 4-point.  Contact points are on Teflon pads on the wood, and PVC blocks on the aluminum pivot bar.  The bottom brackets which support the bottom side of the primary mirror are brackets for curtains!

box cell1

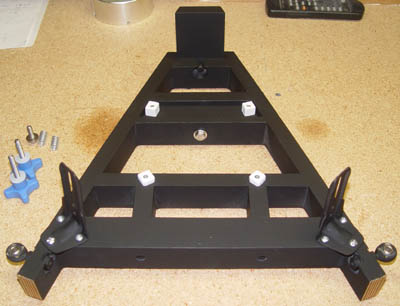

Finally, here's a photo of the mirror cell after stain, polyurethane, and painting.

cell 2
